Technical Capabilities
Technical Capabilities
Plant Capacity
50 Ton/Month
Casting Dimension Range
450mm x 450 mm 450 mm
Weight Range
0.015 to 80.00 Kilograms Weight Per Piece
Materials We Provide
| Material Type | ASTM Standard | DIN Standard |
|---|---|---|
| Carbon Steel | A216 - WCB | 1.0619 |
| A216 - WCC | ||
| A352 - LCC | 1.1138 | |
| A352 - LCB | ||
| 20MnCr5 | ||
| 16MnCr5 | ||
| 42CrMo4 | ||
| Low Alloy Steels | A217 - WC1 | 1.5419 |
| A217 - WC4 | ||
| A217 - WC5 | ||
| A217 - WC6 | 1.7356 | |
| A217 - WC9 | 1.7379 | |
| A217 - WC11 | ||
| A217 - C5 | 1.7363 | |
| A217 - C12 | ||
| A217 - C12A | ||
| Martensitic Steels | A743 - CA15 | 1.4008 |
| A743 - CA40 | 1.4028 | |
| A743 CA-6NM | 1.4313 | |
| Austenitic Stainless Steel | A351 - CF8 | 1.4308 |
| A351 - CF8M | 1.4408 | |
| A351 - CF3 | 1.4306 | |
| A351 - CF3M | 1.4404 / 1.4409 | |
| A351 - CF8C | 1.4827 | |
| A351 - CF10 | 1.4308 | |
| A351 - CK20 | 1.4843 | |
| A351 - CH20 | ||
| A351 - CN7M | 1.45 | |
| A351 - CG8M | 1.4431 | |
| A351 - CG3M | ||
| A747 -17-4PH | X 5 CrNiCuNb 16-4 | |
| A747 CB7Cu-1 | X 5 CrNiCuNb 16-4 | |
| A747 CB7Cu-2 | ||
| Austenitic Ferrite Duplex Steels | A351 - CF3MN | 1.4435 |
| A351 - CD4MCu | ||
| A351 - CG6MMN | 1.3964 | |
| A351 - CK3MCuN | ||
| Super Duplex Stainless Steel | A890/A995 - GR1A | |
| A890/A995 - GR2A | ||
| A890/A995 - GR3A | ||
| A890/A995 - GR4A | ||
| A890/A995 - GR5A | ||
| A890/A995 - GR6A | ||
| Nickle Based Super Alloys | A494 - M-35-1 | 2.4365 |
| A494 - M-35-2 | ||
| A494 - M 30 C | ||
| A494 - N-12MV | ||
| A494 - N-7M | ||
| A494 - CY40 | 2.4816 | |
| A494 - CW12MW | 2.4686 | |
| A494 - CW6M | ||
| A494 - CW2M | 2.461 | |
| A494 - CW6MC | 2.4856 | |
| A494 - CX2MW | 2.4602 | |
| A494 - Cu5MCuC | 2.4858 | |
| A560 - 50Cr50Ni | ||
| A560 - 50Cr50Ni-Nb | 2.4813 | |
| A560 - 60Cr40Ni |
We manufacture castings in various materials and specifications, adhering to international standards such as ASTM, ASME, AISI, DIN, EN, JIS, BS, SAE, GOST, MIL, and IS.
Additionally, we can produce castings in customized grades based on customer requirements while ensuring compliance with any specified standards.
In-House Testing Facalities

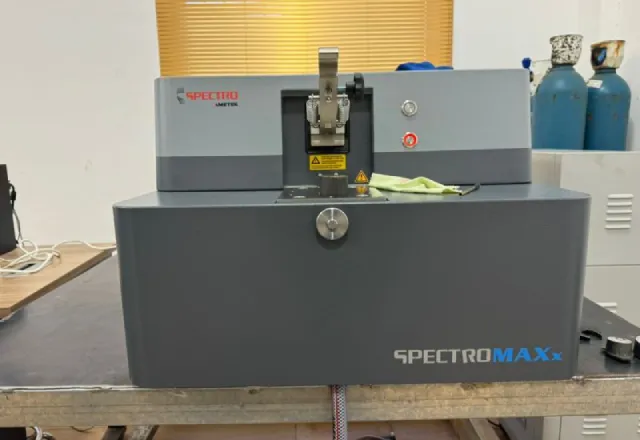

Chemical Testing
Chemical Testing
Online chemical testing by optical emission Spectrometer- Ni, Fe, base and having Nitrogen analysis with 16 elements.

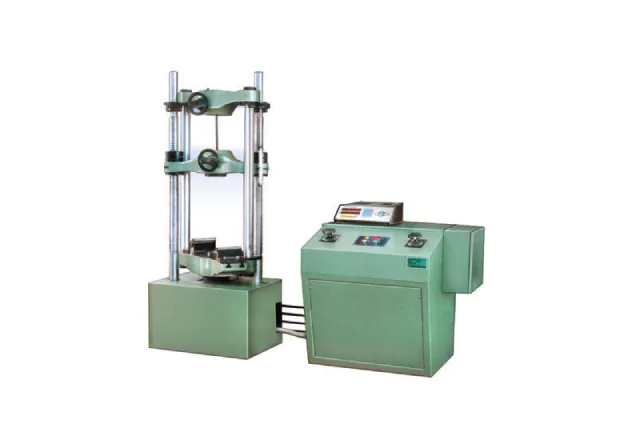

Mechanical Testing
Mechanical Testing
UTM Capacity of 200 KN with computer interface and computerized graph. Electronic Extensometer for 0.2% & 0.1% proof stress.

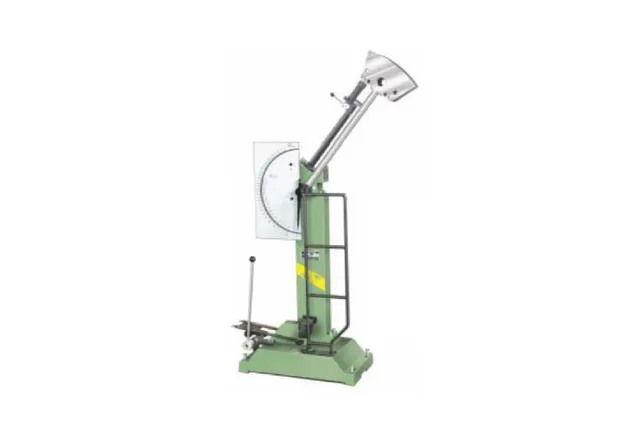

Impact Testing
Impact Testing
Capacity: 300J Max, Capacity: 300J Max, testing temperature from 20°C to -196°C.

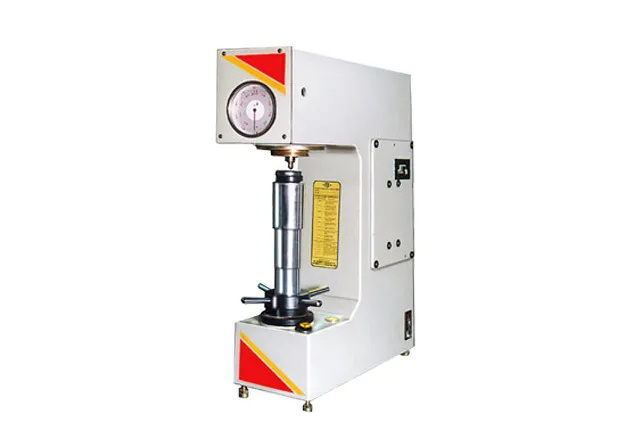

Hardness Testing
Hardness Testing
Rockwell cum Brinell hardness Tester.
